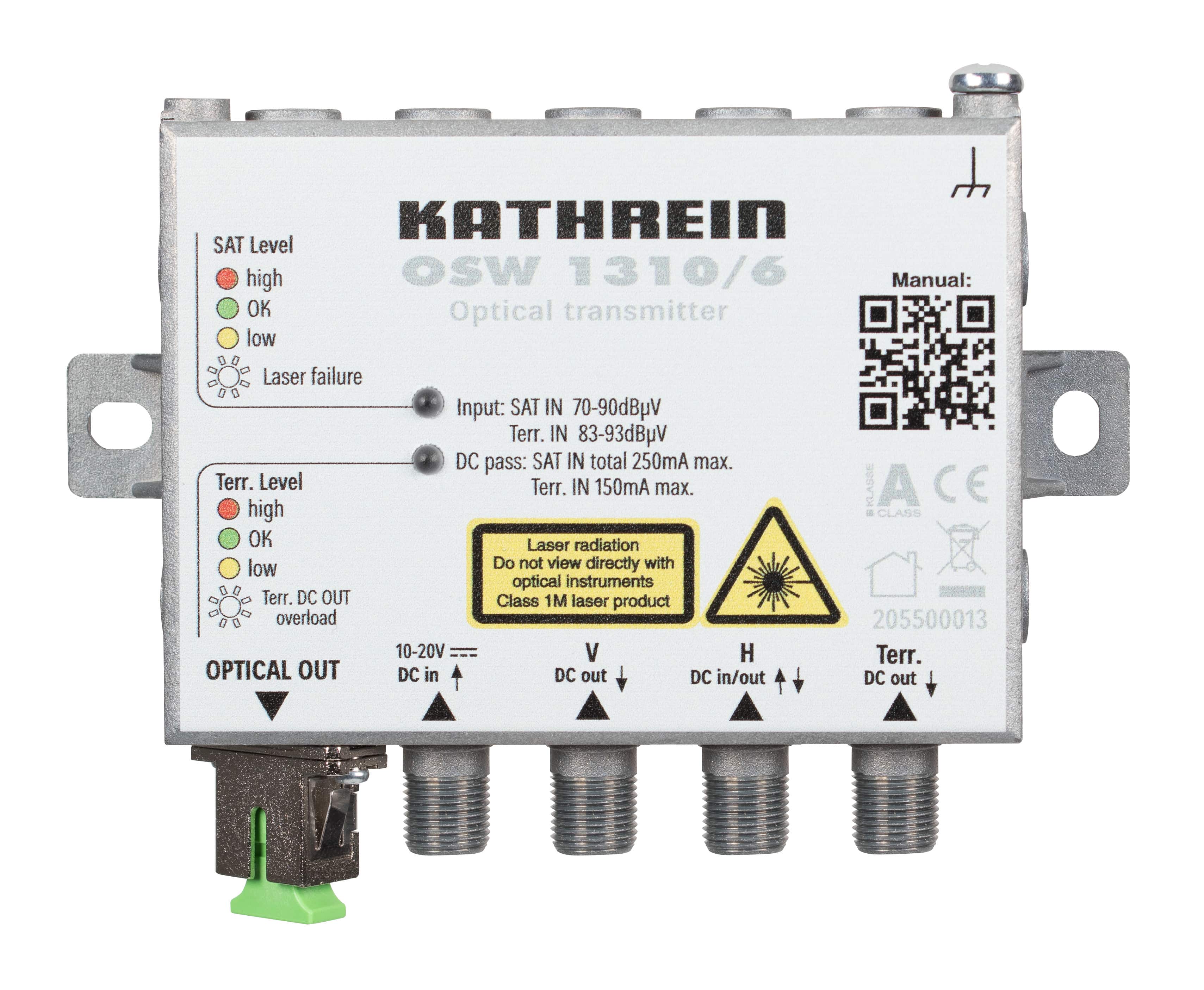

OSW 1310/6 and OSW 1550/6 Optical Transmitters from Kathrein
What are Kathrein OSW Optical Transmitters?
The OSW 1310/6 and OSW 1550/6 from Kathrein are professional optical transmitters designed for satellite signal distribution over fiber optic networks. These devices convert satellite RF signals into optical signals, allowing them to be transmitted through fiber optic cables over long distances with minimal signal loss.
These transmitters are commonly used in modern centralized TV distribution installations, such as:
- Hotels
- Commercial buildings
- Large TV distribution networks
- Airports
| Model | Wavelength | Optical Output Power | Type |
|---|---|---|---|
| OSW 1310/6 | 1310 nm | +6 dBm | Optical transmitter |
| OSW 1550/6 | 1550 nm | +6 dBm | Optical transmitter |

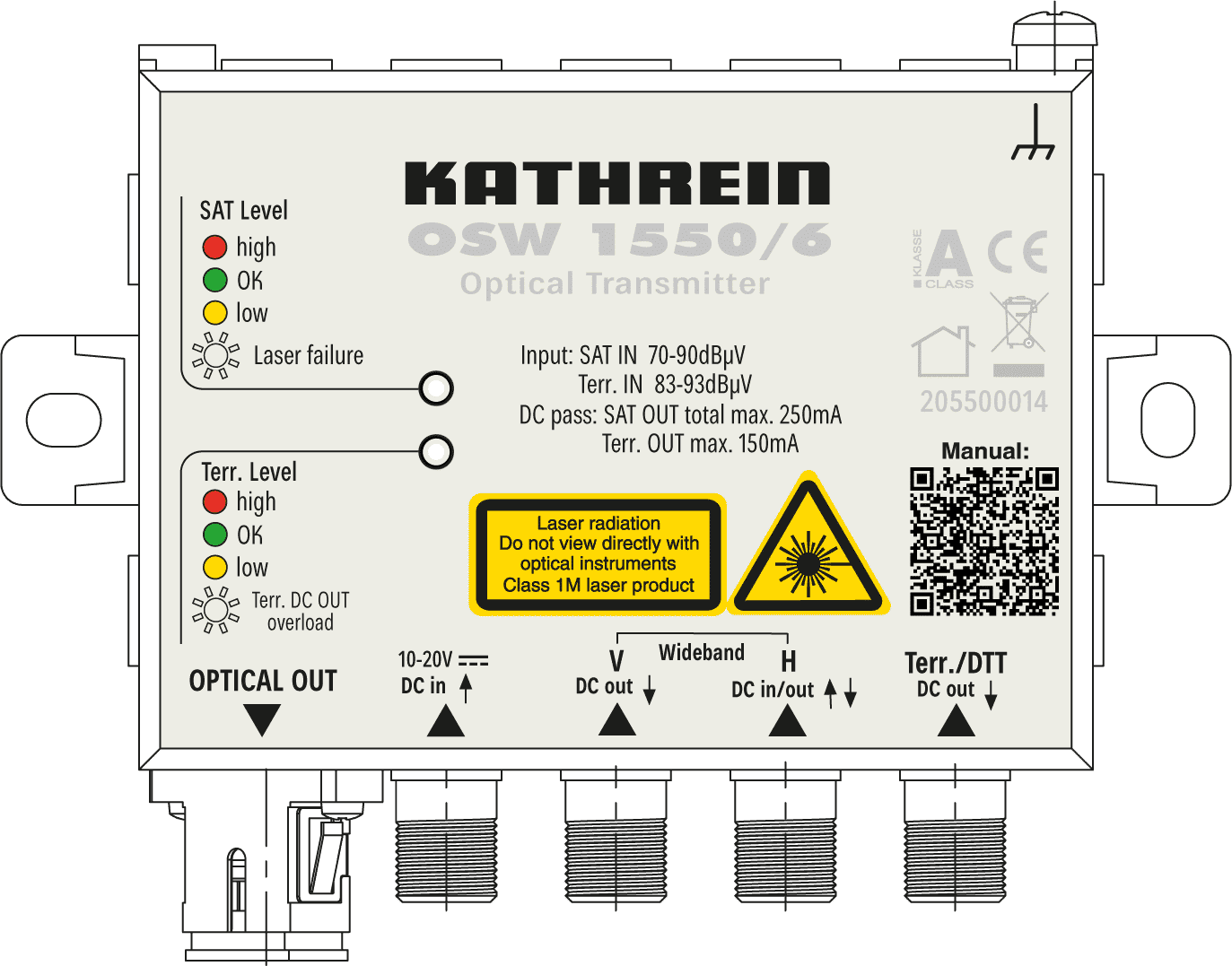

New Optical Transmitters OSW 1310/6 and OSW 1550/6
LYRA SA announces the arrival of the new OSW 1310/6 and OSW 1550/6 optical transmitters from Kathrein, designed for modern satellite TV distribution systems over fiber optic networks.
The devices operate at the following wavelengths:
- 1310 nm for the OSW 1310/6 model
- 1550 nm for the OSW 1550/6 model
Both transmitters provide an optical output power of +6 dBm, ensuring reliable signal transmission across fiber optic networks.
The transmitters feature compact dimensions of 116 × 84 × 25.5 mm, making them ideal for installations in professional television distribution systems.
You can also explore the optical receivers from our company to learn how these devices can be combined for complete fiber optic satellite distribution systems.
Key Features
The optical transmitters from Kathrein include several features that ensure reliable performance in demanding installations.
Satellite Signal Inputs
- Wideband inputs (1 vertical and 1 horizontal)
- Frequency range: 300 – 2350 MHz
- Connections via F-type connectors
LNB Power Supply
The devices provide power supply for the connected wideband LNB through the wideband input connectors, with a maximum current of 250 mA.
Terrestrial Signal Support
The transmitters include an additional DTT input, allowing connection of the OUT 201 terrestrial converter for the transmission of terrestrial TV signals.
The OUT 201 converter can be remotely powered through the F-type DTT connector.
Optical Output
The optical output is provided via a high-quality SC/APC connector, ensuring a reliable connection to fiber optic networks.
Automatic Level Control
The transmitters feature an integrated AGC (Automatic Gain Control) with a satellite input level range of 70 – 90 dBμV, ensuring stable and reliable operation.
Signal Level Indicator
The device includes a three-color LED level indicator, allowing easy monitoring of both satellite and terrestrial signal levels.
Power Supply
Power is supplied through an F-type connector using the external power supply unit NCF 18 (not included in the standard package).

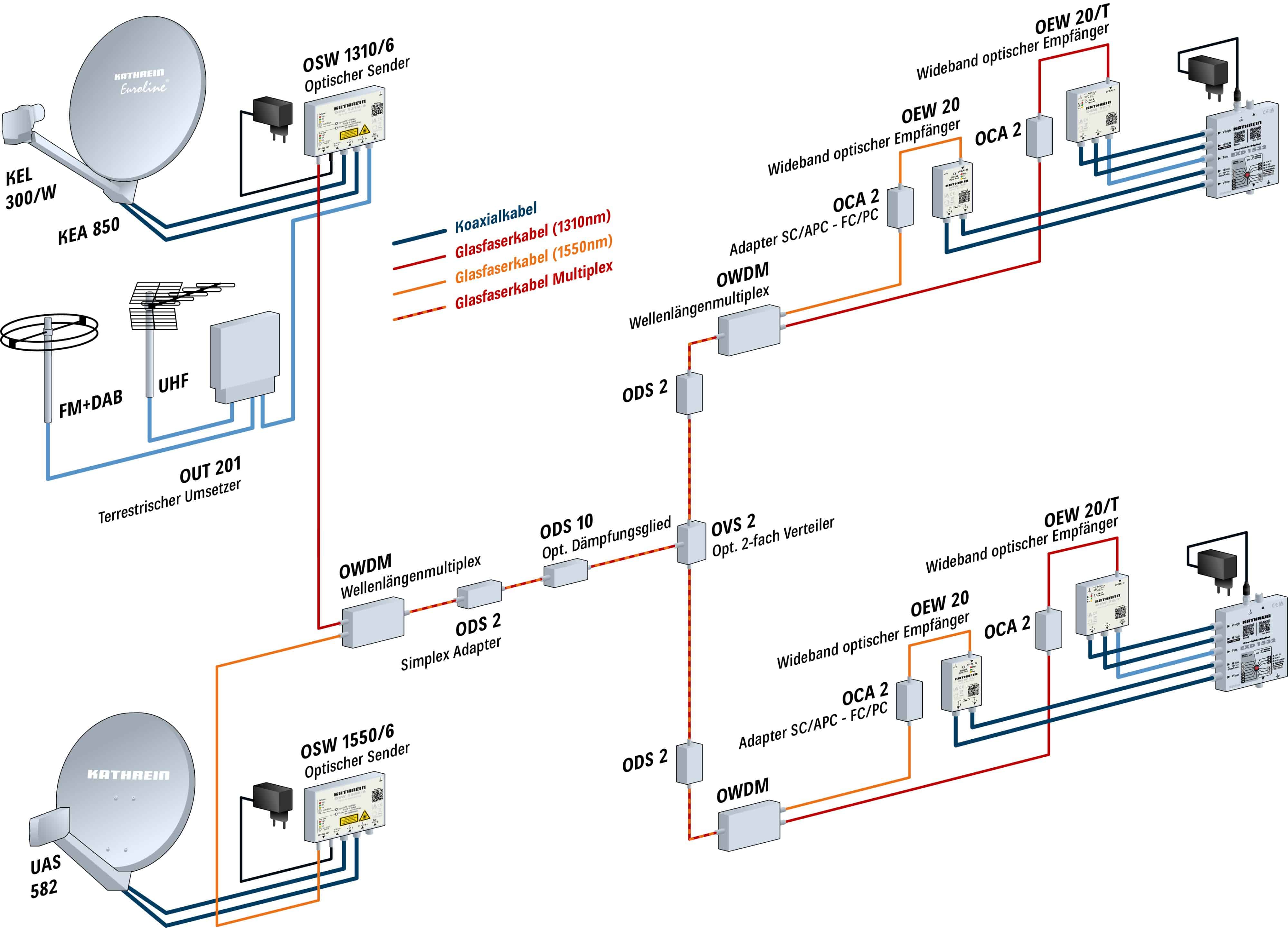

Ideal Solution for Fiber Optic TV Distribution Networks
The OSW 1310/6 and OSW 1550/6 optical transmitters from Kathrein provide a reliable solution for installations where satellite signals are distributed via fiber optic networks.
Key advantages of these systems include:
- Long-distance signal transmission
- Minimal signal loss
- High operational reliability
- Ability to distribute signals to multiple subscribers
These devices incorporate Kathrein’s engineering expertise and represent an ideal solution for professional television distribution installations.
Conclusion
The OSW 1310/6 and OSW 1550/6 optical transmitters from Kathrein provide reliable transmission of satellite and terrestrial signals through fiber optic networks.
With high build quality, integrated level control, and compatibility with wideband LNBs and multiswitch systems, these devices are an ideal choice for professional TV distribution installations in commercial buildings, hotels, and large television distribution networks.
