KATHREIN UFO Prolite Digital Headend – For Professional TV Systems
Digital Headends are the core of every modern professional TV distribution installation. The new KATHREIN UFO Prolite Compact Headend series offers advanced capabilities for processing, converting, and distributing TV signals, meeting the needs of hotels, hospitals, stadiums, vessels, and large commercial facilities.
Our company, LYRA S.A. – Official KATHREIN Representative in Greece, offers complete digital Headend solutions with technical support and project design services.
What Are Digital Headends?
Digital headends are primarily used in professional networks where the following is required:
- Centralized management of TV content
- Simultaneous distribution of multiple channels
- High-quality video and audio
- 24/7 reliability
The output of each headend is in one of the following signal formats:
- DVB-C
- DVB-T
- IPTV / DVB-IP
- RF networks
Digital headends, like the KATHREIN UFO Prolite, are the top choice for headends for hotels, headends for hospitals, headends for vessels, headends for stadiums, headends for airports, and also for IPTV headend solutions.
KATHREIN UFO Prolite Series – Digital Headend Systems
The KATHREIN UFO Prolite series is designed for flexibility, scalability, and maximum performance in professional installations.

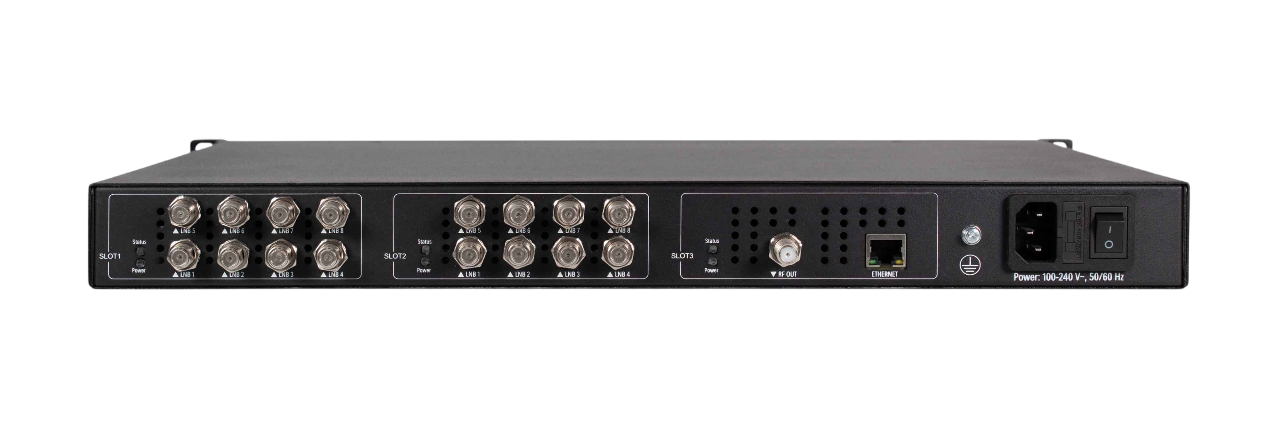

🔹 UFO 120/16 – High Capacity Headend
Ideal for large-scale installations.
- 16x DVB-S/-S2/-S2X inputs
- 16x DVB-C & IP outputs
- High signal processing capacity

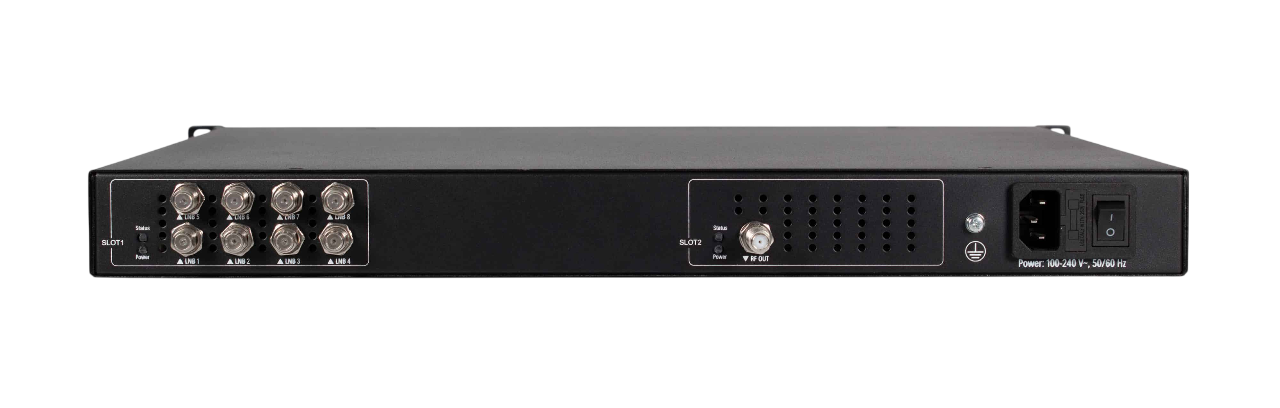

🔹 UFO 120/8 – Medium Scale Headend
For medium-scale applications.
- 8x DVB-S/-S2/-S2X
- 4x DVB-T/T2
- 2x PCMCIA
- 8x DVB-C or DVB-T & IP outputs

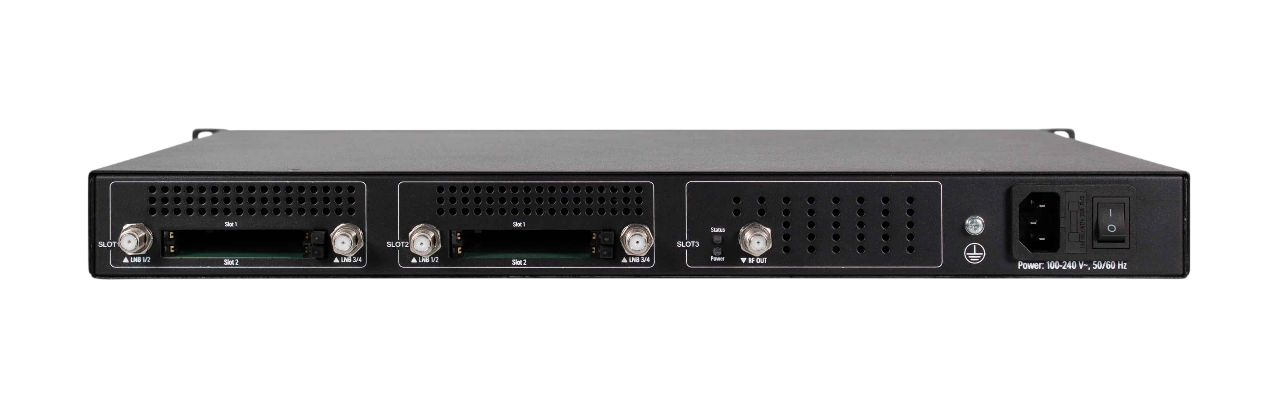

🔹 UFO 120/8 CI – CI & Subscription Channels
For managing encrypted channels.
- 8x DVB-S/-S2/-S2X
- 8x DVB-C or DVB-T & IP
- 4x CI Slots
- Support for Common Interface (CA Modules)
Suitable for installations requiring a headend for subscription channels.

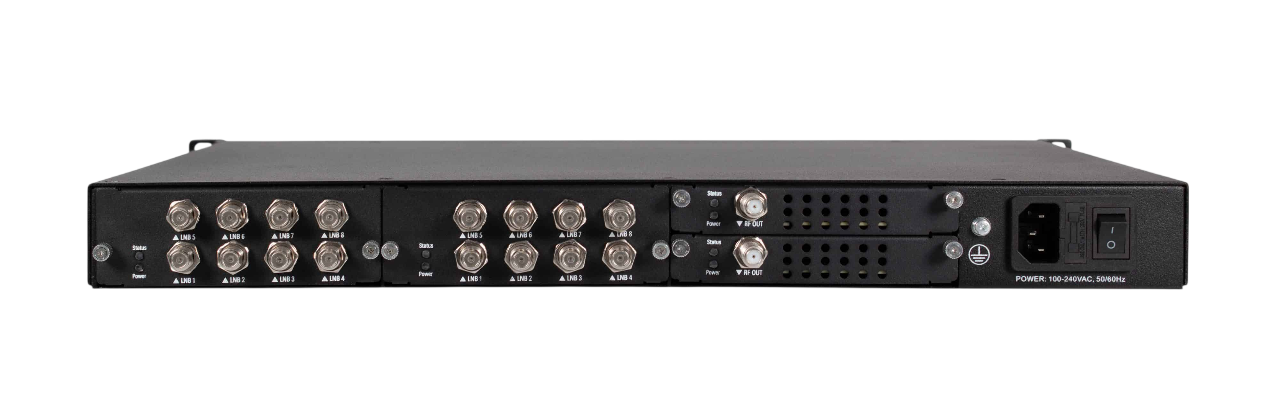

🔹 UFO 130/16 – Fast Processing Headend
High processing speeds and distribution for large networks.
- 16x DVB-S/-S2/-S2X
- 16x DVB-T & IP outputs

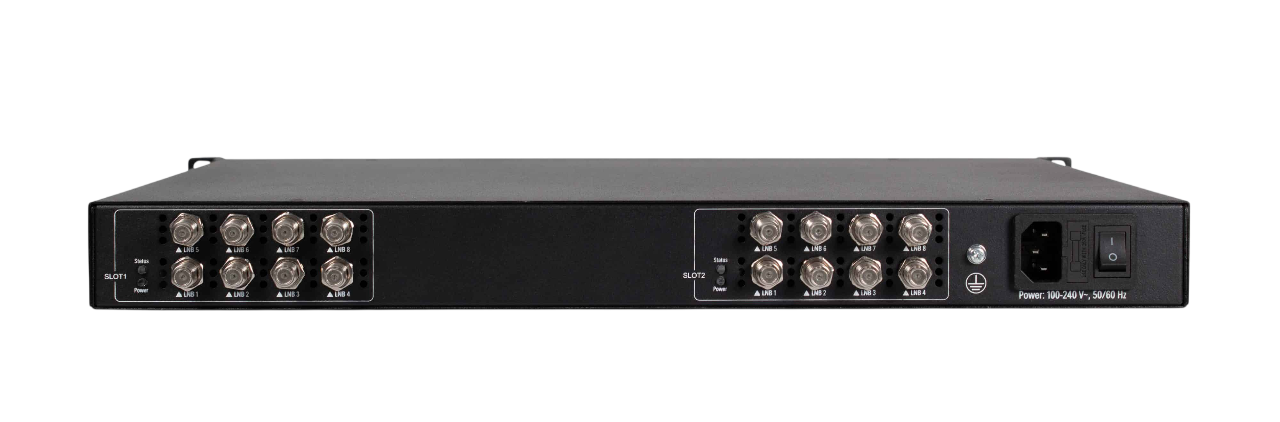

🔹 UFO 140/16 – High Performance Headend
The most powerful digital headend in the series.
- 16x DVB-S/-S2/-S2X
- 4x DVB-T (2x PCMCIA)
- Up to 119 IP Streams
Where Are Digital Headends Used?
Professional headend systems are applied in:
- 🏨 Hotels & Resorts
- 🏥 Hospitals & Clinics
- ⚽ Stadiums & Sports Centers
- 🚢 Cruise Ships & Vessels
- 🏢 Shopping Malls
- 🏬 Large Corporate Facilities
The ability to convert DVB-S to DVB-C or IPTV makes digital headends essential for modern TV networks.
Advantages of KATHREIN Digital Headends
✔ High-quality video and audio
✔ Remote management
✔ Flexible configuration options
✔ Support for CI & decryption
✔ Reliability for 24/7 operation
✔ Compatibility with professional RF & IPTV networks
KATHREIN's expertise ensures long-term stability and low operational costs.
Why Choose Us?
LYRA S.A. – Official KATHREIN Representative in Greece offers:
- Manufacturer warranty
- Project study & design
- Technical support
- Solutions tailored to each installation
- Consultancy for professional TV systems
➡️ Contact us for the study & installation of KATHREIN digital headends. Request a quote today!
Frequently Asked Questions (FAQ)
-
What is a digital headend?
A digital headend is a system that receives and converts TV signals for central distribution in professional networks. -
Which headend is suitable for hotels?
It depends on the type and number of channels you want to distribute across your network. -
Do they support IPTV?
Yes, the UFO Prolite models support DVB-IP streaming. -
Can they manage subscription channels?
Yes, the models with CI support decryption via CA modules.
Discover KATHREIN Solutions for Professional Success and Growth
Explore KATHREIN solutions for digital headends and professional TV systems. KATHREIN is a leading reference in technology and telecommunications, offering reliable digital headends, IPTV, DVB, and multiswitch solutions for hotels, hospitals, stadiums, and professional installations.
We support technicians, companies, and partners, helping them fully leverage the capabilities of technology with solutions that combine innovation, high quality, and reliability.
With KATHREIN solutions, technology becomes a tool for success and growth for every professional installation, ensuring efficient operation and continuous network development.
➡️ Contact us today to learn how KATHREIN solutions can upgrade your TV distribution and professional TV systems.
